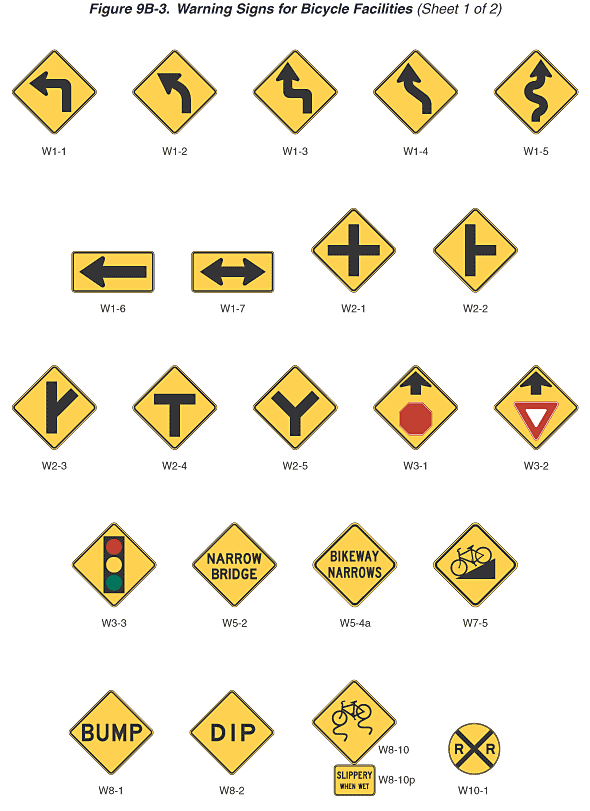

Figure 9B-3. Warning Signs for Bicycle Facilities (Sheet 1 of 2) This figure illustrates 32 warning signs for bicycle facilities. The figure is composed of two sheets. Sheet 1 shows the following 23 warning signs: W1-1 is shown as a diamond-shaped yellow sign with a black border. It shows a right-angled black arrow pointing up and to the left. W1-2 is shown as a diamond-shaped yellow sign with a black border. It shows a black arrow curving up and to the left. W1-3 is shown as a diamond-shaped yellow sign with a black border. It shows an upward-pointing black arrow with a 90-degree turn to the left and then a 90-degree turn to the right, straightening to a vertical direction. W1-4 is shown as a diamond-shaped yellow sign with a black border. It shows an upward-pointing black arrow that slants diagonally up and to the left and then straightens to a vertical direction. W1-5 is shown as a diamond-shaped yellow sign with a black border. It shows an upward-pointing black arrow that curves sharply to the right, to the left, to the right, and then straightens to a vertical direction. W1-6 is shown as a horizontal rectangular yellow sign with a black border. It shows a large horizontal black arrow pointing to the left. W1-7 is shown as a horizontal rectangular yellow sign with a black border. It shows a large horizontal two-direction black arrow. W2-1 is shown as a diamond-shaped yellow sign with a black border. It shows a vertical black line bisecting a horizontal black line. W2-2 is shown as a diamond-shaped yellow sign with a black border. It shows a vertical black line with a horizontal black line extending to the right from the middle of the vertical line. W2-3 is shown as a diamond-shaped yellow sign with a black border. It shows a vertical black line with a diagonal black line extending up and to the right from the middle of the vertical line. W2-4 is shown as a diamond-shaped yellow sign with a black border. It shows a black T-shaped symbol. W2-5 is shown as a diamond-shaped yellow sign with a black border. It shows a black Y-shaped symbol. W3-1a is shown as a diamond-shaped yellow sign with a black border. It shows an upward-pointing black arrow above an octagonal red Stop sign symbol. W3-2a is shown as a diamond-shaped yellow sign with a black border. It shows an upward-pointing black arrow above a downward-pointing equilateral triangular red and white Yield sign symbol. W3-3 is shown as a diamond-shaped yellow sign with a black border. It shows a symbol of a vertical traffic signal with red, yellow, and green circular lights. W5-2 is shown as a diamond-shaped yellow sign with a black border. It shows the words "NARROW BRIDGE" in black on two lines. W5-4a is shown as a diamond-shaped yellow sign with a black border. It shows the words "BIKEWAY NARROWS" in black on two lines. W7-5 is shown as a diamond-shaped yellow sign with a black border. It shows a black symbol of a bicycle pointing to the left and down on a ramp that slopes up from left to right. W8-1 is shown as a diamond-shaped yellow sign with a black border. It shows the word "BUMP" in black. W8-2 is shown as a diamond-shaped yellow sign with a black border. It shows the word "DIP" in black. W8-10 is shown as a diamond-shaped yellow sign with a black border. It shows a black symbol of a bicycle at a slight angle pointing down and to the left. Two vertical wavy lines are shown extending down from the bicycle tires. W8-10p is shown as a horizontal rectangular yellow sign with a black border. It shows the words "SLIPPERY WHEN WET" in black on two lines. It is shown directly below the W8-10 sign. W10-1 is shown as a round yellow sign with a black border. It shows a black "X" with a black "R" to the left and right of it. Continue to: Sheet 2 |
