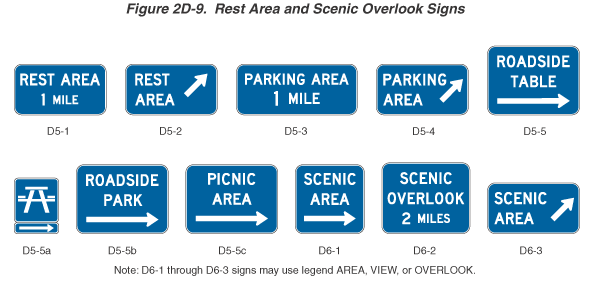

Figure 2D-9. Rest Area and Scenic Overlook Signs
This figure shows 11 rest area and scenic overlook signs. They
are blue with white borders and legends.
D5-1 is shown as a horizontal rectangular sign with the words "REST
AREA" and "1 MILE" on two lines.
D5-2 is shown as a horizontal rectangular sign with the words "REST
AREA" on two lines and, to the right of the text, a diagonal
arrow pointing up and to the right.
D5-3 is shown as a horizontal rectangular sign with the words "PARKING
AREA" and "1 MILE" on two lines.
D5-4 is shown as a horizontal rectangular sign with the words "PARKING
AREA" on two lines and, to the right of the words, a diagonal
arrow pointing up and to the right.
D5-5 is shown as a horizontal rectangular sign with the words "ROADSIDE
TABLE" on two lines above a right-pointing horizontal arrow
on a third line.
D5-5a is shown as a square sign with a symbol of a picnic table
over a separate horizontal rectangular sign with a right-pointing
horizontal arrow.
D5-5b is shown as a horizontal rectangular sign with the words
"ROADSIDE PARK" on two lines above a right-pointing horizontal
arrow on a third line.
D5-5c is shown as a horizontal rectangular sign with the words
"PICNIC AREA" on two lines above a right-pointing horizontal
arrow on a third line.
D6-1 is shown as a square sign with the words "SCENIC AREA"
on two lines above a right-pointing horizontal arrow on a third
line.
D6-2 is shown as a horizontal rectangular sign with the words "SCENIC,"
"OVERLOOK," and "2 MILES" on three lines.
D6-3 is shown as a horizontal rectangular sign with the words "SCENIC
AREA" on two lines and, to the right of the text, a diagonal
arrow pointing up and to the right.
A note states "D6-1 through D6-3 signs may use legend AREA,
VIEW, or OVERLOOK."
