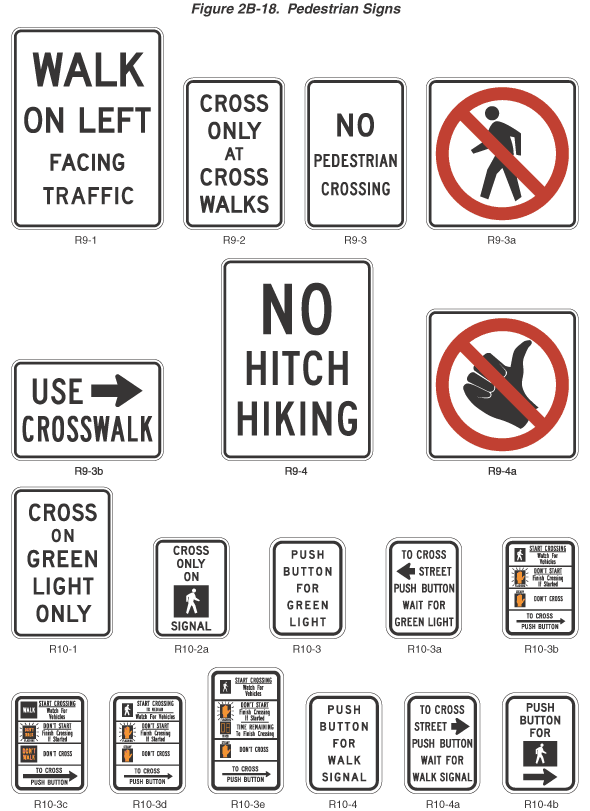

Figure 2B-18. Pedestrian Signs

This figure shows 17 pedestrian signs.

R9-1 is shown as a vertical rectangular white sign with a black border and legend. The words "WALK ON LEFT" are shown in large letters on the top two lines above the words "FACING TRAFFIC" on the next two lines.

R9-2 is shown as a vertical rectangular white sign with a black border and the words "CROSS ONLY AT CROSSWALKS" in black on five lines.

R9-3 is shown as a vertical rectangular white sign with a back border and legend. The word "NO" is shown in large letters on the top line above the words "PEDESTRIAN CROSSING" on the next two lines.

R9-3a is shown as a square white sign with a black border and a black symbol of a walking person inside a red circle with a red slash across the symbol.

R9-3b is shown as a horizontal rectangular white sign with a black border and legend. The word "USE" and a right-pointing black arrow are shown on the top line and the word "CROSSWALK" on the bottom line.

R9-4 is shown as a vertical rectangular white sign with a black border and legend. The word "NO" is shown in large letters on the top line above the words "HITCH HIKING" on the next two lines.

R9-4a is shown as a square white sign with a black border and a black symbol of a hand with the thumb extended inside a red circle with a red slash across the symbol.

R10-1 is shown as a vertical rectangular white sign with a black border and the words "CROSS ON GREEN LIGHT ONLY" in black on five lines.

R10-2a is shown as a vertical rectangular white sign with a black border and legend. The words "CROSS ONLY ON" are shown on three lines above a white symbol of a walking person on a black square, which is above the word "SIGNAL."

R10-3 is shown as a vertical rectangular white sign with a black border and the words "PUSH BUTTON FOR GREEN LIGHT" in black on five lines.

R10-3a is shown as a vertical rectangular white sign with a black border and legend. The words "TO CROSS STREET PUSH BUTTON WAIT FOR GREEN LIGHT" are shown on five lines. A left-pointing black arrow is shown to the left of the word "STREET" on the second line.

R10-3b is shown as a vertical rectangular white sign with a black border and legend and with four sections divided by horizontal black lines. The top section shows a walking person symbol to the left of the words "START CROSSING WATCH FOR VEHICLES" on three lines. The next section shows an orange caution symbol of an upraised hand with the palm facing the viewer, labeled "FLASHING," to the left of the words "DON'T START FINISH CROSSING IF STARTED" on three lines. The third section shows an orange caution symbol of an upraised hand with the palm facing the viewer, labeled "STEADY," to the left of the words "DON'T CROSS." The bottom section shows the words "TO CROSS" above a right-pointing black arrow above the words "PUSH BUTTON."

R10-3c is shown as identical to the R10-3b sign except the walking person sign in the top section is replaced by a square with the word "WALK" and the upraised hand in the second and third sections is replaced by a square with the words "DON'T WALK."

R10-3d is shown as identical to the R10-3b sign except the words "TO MEDIAN" are shown added below the words "START CROSSING" in the top section.

R10-3e is shown as identical to the R10-3b sign except a black panel with the orange numerals "08," labeled "TIME" is shown to the left of the words "TIME REMAINING TO FINISH CROSSING" added to the bottom on the second section.

R10-4 is shown as a vertical rectangular white sign with a black border and the words "PUSH BUTTON FOR WALK SIGNAL" in black on five lines.

R10-4a is shown as a vertical rectangular white sign with a black border and legend. The words "TO CROSS STREET PUSH BUTTON WAIT FOR WALK SIGNAL" are shown on five lines. A right-pointing black arrow is shown to the right of the word "STREET" on the second line.

R10-4b is shown as a vertical rectangular white sign with a black border and legend. The words "PUSH BUTTON FOR" are shown on three lines above a white symbol of a walking person on a black square, which is above a right-pointing black arrow.
